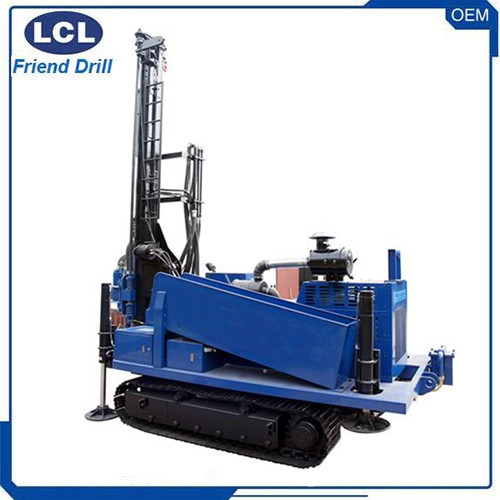

CRAWLER HYDRAULIC WELLS-GEOTHERMAL DRILLING RIG PARAMETERS
(Water Well and Geothermal Drilling Rigs)1. Rotary head: Brand: EATON (U.S. Brand) Rotary power head mounted on the drill, a rotary elecro-hydraulic valve controls two hydraulic motors, enabling rotation speed and the two kinds of gearbox.....
Product Details
CRAWLER HYDRAULIC WELLS-GEOTHERMAL DRILLING RIG PARAMETERS
(Water Well and Geothermal Drilling Rigs)
Min.Order Quantity: 1 Piece/Pieces
Supply Ability: 100 Piece/Pieces per Month
Port: Tianjin port/Shanghai port/Guangzhou port Shenzhen/Qingdao
Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal
Introduction
We are a professional and experienced integrated drill enterprise which engages in the design, research,development, manufacturing and marketing of different kinds of product in superior quality, competitive price and perfect service for more than 20 years
Product Description

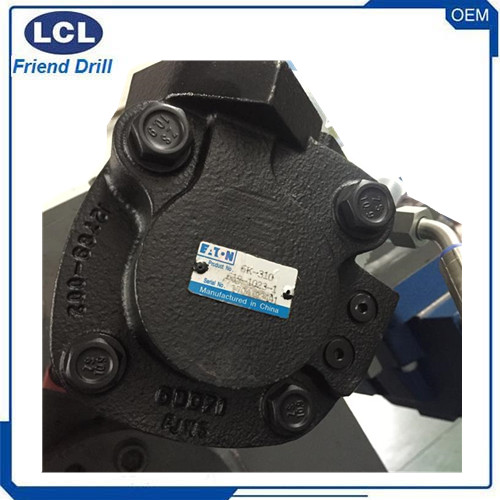

1. Rotary head: Brand: EATON (U.S. Brand)

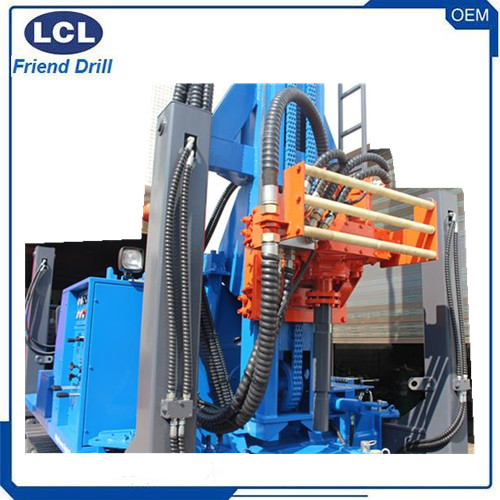

Rotary power head mounted on the drill, a rotary elecro-hydraulic valve controls two hydraulic motors, enabling rotation speed and the two kinds of gearbox output torque to enable rig adapt to different working conditions.
2. Engine: Power system is diesel drive system. Cummins 93 KW industry-specific engine, hydraulic pump and motor provide a strong impetus for the rigs.

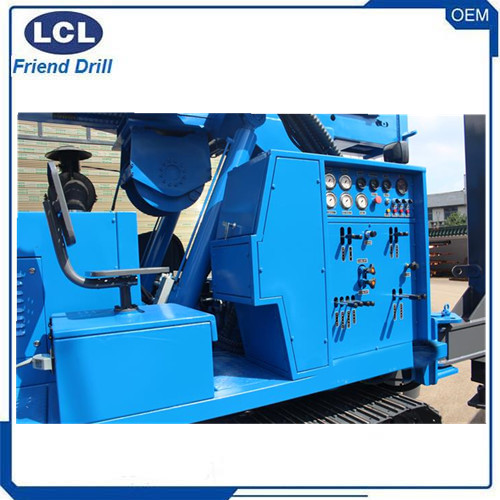

3. Operation platform: The control board is consist of console frame, electro-hydraulic valve, reducing valve, compensated flow control valve, oil pressure gauge, engine instrumentation, cable accelerator, ignition in the control table, that makes operation easier and improve work efficiency.
4. Feeding system: Drilling and lifting are supported by hydro-cylinder-chain plate structure, which is safe, reliable and durable.
5. Hydraulic outrigger: Large stroke hydraulic legs for rig transportation makes loading and unloading without lifting equipment, equipment can be self-loaded, hydraulic legs with the direction of the horizontal instrument to achieve rapid leveling rig.

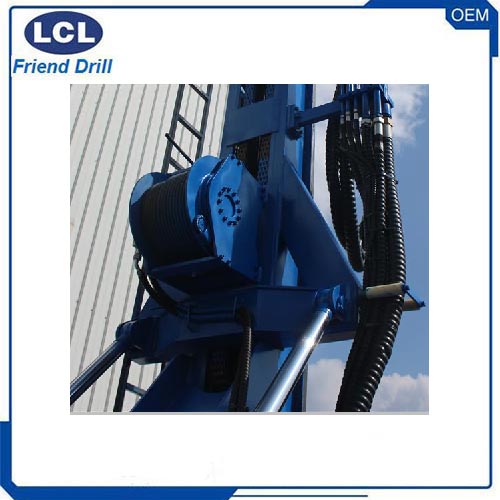

6. Winch system: Hydraulic motor-powered winch can flexibly hoist less than 1.5 tons of drilling tools or accessories.

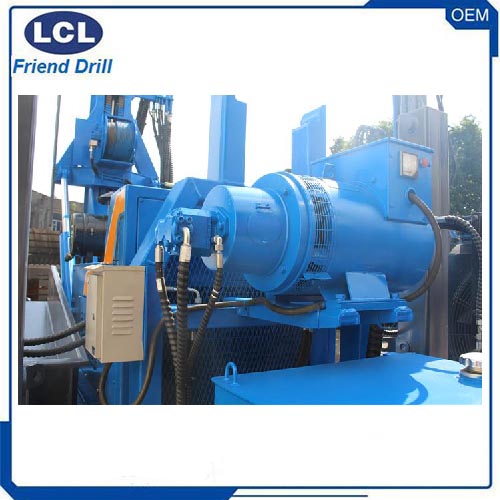

7. Generator: The drilling rig is driven by the hydraulic motor. A three-phase synchronous AC generator with a output power of 24KW can be used as an emergency power supply, which is suitable for sleeve welding or any other equipment that requires 380V AC power supply.

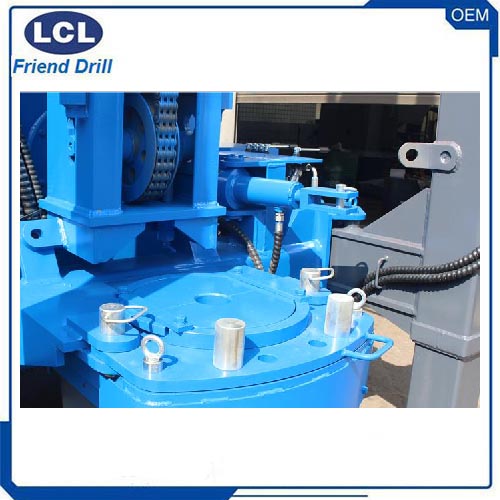

8. Wrench hydraulic cylinder: Hydraulic cylinder-powered wrench can disassemble all kinds of joints quickly and lighten labor intensity.

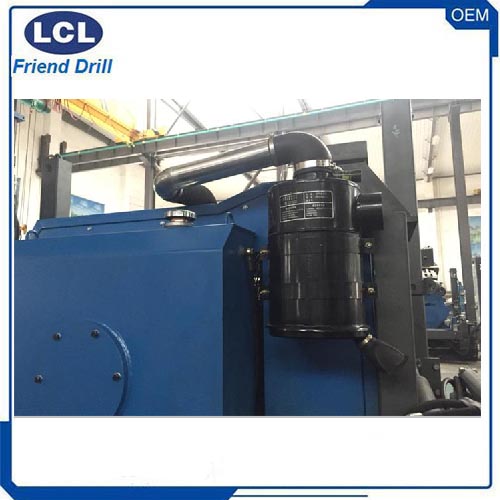

9. Air filter: Two-stage air filter can filter over 90% of dusts in the air inflow, which can effectively reduce the abrasion of engine, endure the lifetime and be used in various severe working conditions.
More detail, welcome to send Inquiry or Email: [email protected]
| Parameter | Type | ||
| FRD-W830C | FRD-W830A | FRD-W850A | |
| Aperture(Drilling hole dia) | 105-311mm | 105-311mm | 130-350mm |
| Drilling depth | 300m | 300m | 500m |
| Cylinder legs | Common legs | High legs | High legs |
| Adaptive rock | F≥8 | F≥8 | F≥8 |
| Rotation torque | 4400Nm | 3450Nm 6900Nm | 4250Nm 8500Nm |
| Rotary speed | 0-100rpm | 0-11 Or/min 0-55r/min | 0-180r/min 0-90r/min |
| Thrust capacity | 60kN | 60kN | 60kN |
| Feed stroke | 3700mm | 3700mm | 5300mm |
| Lifting capacity | 120KN | 120KN | 200KN |
| Hammer model | FD45 /FD55/FD65 | FD45/FD55/FD65 | FD65/FD85/FN10 |
| Drill rod diameter | 76mm、89mm | 76mm、89mm | 89mm 102mm |
| Drill rod length | 3m | 3m | 4.5m |
| Travel speed | 2.5Km/h | 2.5Km/h | 3.2Km/h |
| Grade ability | 21° | 21° | 21° |
| Rising height from ground | 300mm | 300mm | 300mm |
| Wind pressure | 1.05-2.46Mpa | 1.05-2.46Mpa | 1.05-3.5Mpa |
| Air consumption | ≥18m³ /min | ≥18m³ /min | ≥25 m³ /min |
| Engine power | 93kW | 93kW | 132kW |
| Dimension | Length X Width X Height | Length X Width X Height | Length X Width X Height |
| On transportation | 58OOX2210X2850mm | 5800X221OX2850 mm | 8085X2250X3200 mm |
| On working | 4920X221 OX6700mm | 4700X221OX6700mm | 5498X2250X8941 mm |
| Gross weight | 8.8T | 9.5T | 12.5T |
More detail, welcome to send Inquiry or Email: [email protected]
More detail, welcome to send Inquiry or Email: [email protected]
| We can design and manufacture according to customer's requirements of the Bit Dia.,No.of air holes,carbide button shape and the face shape | |
| Our Bit Face Shape Selection | |
| Double Gauge Face——This kind of face shape is suitable for fast penetration rates in medium to hard rock formation.Designed for high air pressures and good resistance to steel wash step gauge bit.dth hammer drill bit / low air pressure tungsten carbide dth drill button bits | |
| Convex Face—For high penetration rates in soft to medium-hard with low to medium air pressures.It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons,but poor hole deviation control. | |
| Concave Face---The all-round application bit face specially for medium hard and homogenerous rock formations.Good hole deviation control and good flushing capacity. | |
| Flat Face---This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures.Good penetration rates an resistance to steel wash. | |
Drop Center---For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures.Maximum hole deviation control.dth hammer drill bit / low air pressure tungsten carbide dth drill button bits | |
| Our Carbide Button Shape Selection | |
Spherical/Domed/Round Button are usually used as gauge buttons of DTH Bits, suitable for very abrasive and very hard formations. | |
Parabollic/Semi-Ballistic Button are usually used as gauge buttons and front buttons of DTH Bits,suitable for medium abrasive and hard formations. | |
Ballistic Button are usually used as front buttons of DTH Bits, suitable for medium abrasive and medium hard formations. They also can be used as gauge buttons if the rock is soft. | |
Conical/Cone/Sharp Button are usually used as front buttons of DTH Bits for soft formations where fast penetration rates are possible and button breakage is minimal. |
More detail, welcome to send Inquiry or Email: [email protected]
