FULL HYDRAULIC MULTIFUNCTIONAL DRILLING RIG PARAMETERS
FRI-W900 WATERWELL DRILL RIG TECHNICAL DATA
Product Details
FULL HYDRAULIC MULTIFUNCTIONAL DRILLING RIG PARAMETERS
(900 Meters Water Well Drilling Machine)
Min.Order Quantity: 1 Piece/Pieces
Supply Ability: 100 Piece/Pieces per Month
Port: Tianjin port/Shanghai port/Guangzhou port Shenzhen/Qingdao
Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal
Introduction
We are a professional and experienced integrated drill enterprise which engages in the design, research,development, manufacturing and marketing of different kinds of product in superior quality, competitive price and perfect service for more than 20 years
Product Description

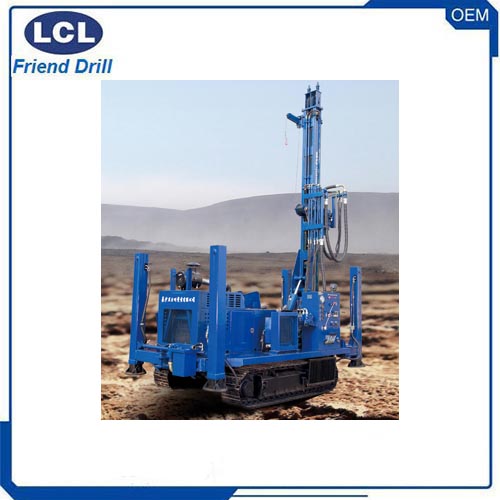

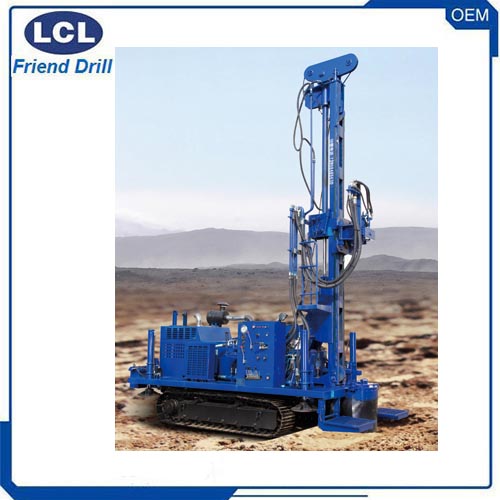

The rig's maximum drilling depth is up to 900 meters, the maximum hole diameter 105~445mm, can match the different application like geothermal projects, exploitation of groundwater, hydro-geological exploration, piling in foundation and some other projects.
The whole machine is advantageous with a more powerful lifting, bigger output torque, higher working efficiency, flexibility, as well as better stability etc.,
Features of Water & Geothemal Well Drilling Rig
1. Control panel

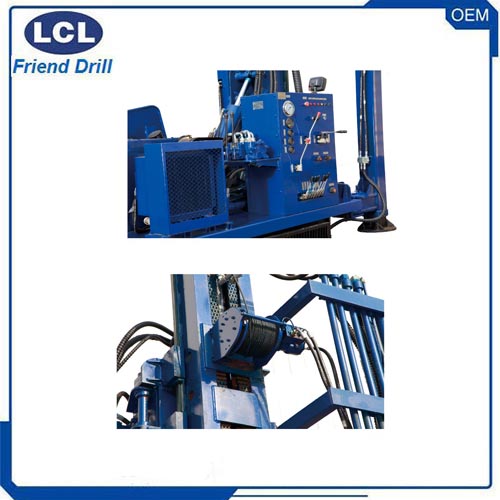

The control board is consist of console frame, electro-hydraulic valve, reducing valve, compensated flow control valve, oil pressure gauge, engine instrumentation, cable accelerator, ignition locks and other components.
All control functions are centralized in the control table, that makes operation easier and improve work efficiency.
2. Rotary head
Rotary power head mounted on the drill, a rotary electro-hydraulic valve controls two hydraulic motors, enabling rotation speed and the two kinds of gearbox output torque to enable rig adapt to different working conditions.
3. Engine

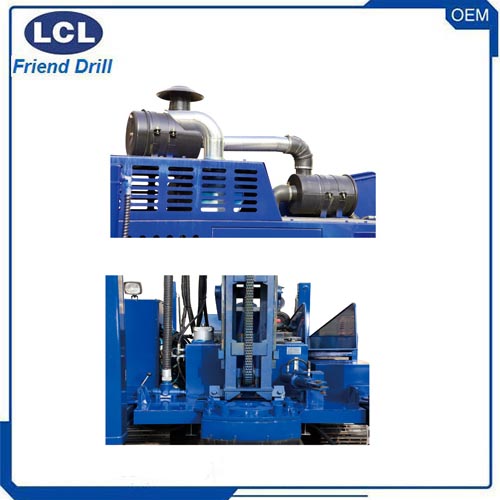

Power system is diesel drive systemCummins industry-specific engine, hydraulic pump and motor provide a strong impetus for the rigs.
4. Feeding & Lifting
Drilling and lifting are supported by structure pf hydro-cylinder - chain plate, which is safe, reliable and durable.
PARAMETERS
| Parameter | Type | |
| FRD-M165 | FRD-M131 | |
| Aperture(Drilling hole dia) | 140-180mm | 203-311mm |
| Drilling depth | 24m | 24m |
| Adaptive rock | F≥8 | F≥8 |
| Rotation torque | 4000Nm | 6000Nm |
| Rotary speed | 0-60rpm | 0-40rpm |
| Thrust capacity | 40kN | 75kN |
| Feed stroke | 4380mm | 4380mm |
| Lifting speed | 0.5m/s | 0.3m/s |
| Hammer model | FD65 | FD85/FD110 |
| Drill rod diameter | 110mm | 146mm |
| Drill rod length | 4mX6 | 4mX6 |
| Travel speed | 2.5Km/h 3Km/h | 2.5Km/h 3Km/h |
| Grade ability | 25° | 25° |
| Rising height from ground | 450mm | 450mm |
| Wind pressure | 1.38-3.2Mpa | 1.38-3.2Mpa |
| Air consumption | 25m³ /min | 28m³ /min |
| Engine power | 75kW | 93kW |
| Dimension | Length X Width X Height | Length X Width X Height |
| On transportation | 9OOOX2900X3400mm | 9000X2900X3400mm |
| On working | 7700X2900X7800mm | 7700X2900X7800mm |
| Gross weight | 17T | 18T |
More detail, welcome to send Inquiry or Email: [email protected]
More detail, welcome to send Inquiry or Email: [email protected]
| We can design and manufacture according to customer's requirements of the Bit Dia.,No.of air holes,carbide button shape and the face shape | |
| Our Bit Face Shape Selection | |
| Double Gauge Face——This kind of face shape is suitable for fast penetration rates in medium to hard rock formation.Designed for high air pressures and good resistance to steel wash step gauge bit.dth hammer drill bit / low air pressure tungsten carbide dth drill button bits | |
| Convex Face—For high penetration rates in soft to medium-hard with low to medium air pressures.It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons,but poor hole deviation control. | |
| Concave Face---The all-round application bit face specially for medium hard and homogenerous rock formations.Good hole deviation control and good flushing capacity. | |
| Flat Face---This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures.Good penetration rates an resistance to steel wash. | |
Drop Center---For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures.Maximum hole deviation control.dth hammer drill bit / low air pressure tungsten carbide dth drill button bits | |
| Our Carbide Button Shape Selection | |
Spherical/Domed/Round Button are usually used as gauge buttons of DTH Bits, suitable for very abrasive and very hard formations. | |
Parabollic/Semi-Ballistic Button are usually used as gauge buttons and front buttons of DTH Bits,suitable for medium abrasive and hard formations. | |
Ballistic Button are usually used as front buttons of DTH Bits, suitable for medium abrasive and medium hard formations. They also can be used as gauge buttons if the rock is soft. | |
Conical/Cone/Sharp Button are usually used as front buttons of DTH Bits for soft formations where fast penetration rates are possible and button breakage is minimal. |
